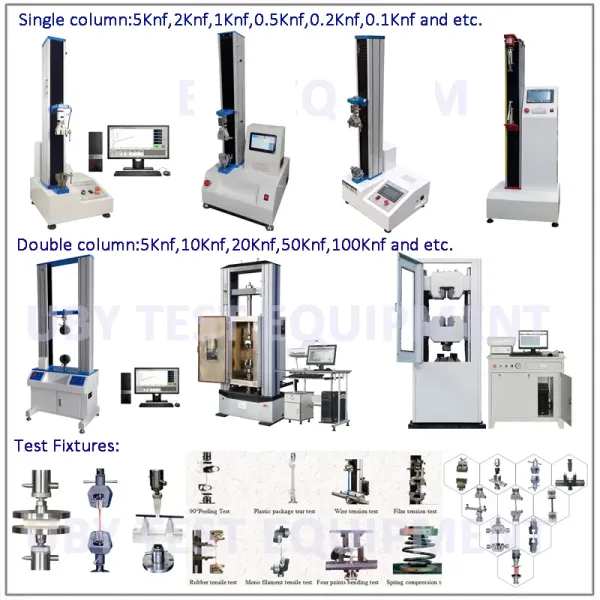

UP-2002 Versatile Tensile Strength Testing Machine With Interchangeable Grips for Various Materials
Product Overview
The universal tensile tester can be used for stretching, compression, bending, bonding, and shearing. According to customer requirements and international standards, use different fixtures for peel testing.
Applications
- Plastics and rubber
- Textiles, leather, electronics
- Automobiles, ceramics and architecture
- Metals and other materials
- Research institutions, quality inspection institutes, and higher education institutions
Compliance Standards
GB/T1040, GB/T528, GB/T529, GB/T8808, GB/T13022, GB/T 2790, GB/T3923.1, GB/T20310, GB/T3690, GB/T4944, GB/t3686 GB/T10654, ASTM D882, ASTM D 638, ISO 527, ASTM D412, ASTM D3574, ASTM E8.
Technical Specifications
| Model |
UP-2002 |
| Range of speed |
50-500mm/min |
| Motor |
AV Servo Motor |
| Capacity choice |
2000KG |
| Resolution |
1/150,000 |
| Effective testing space |
400mm MAX |
| Accuracy |
±0.5% |
| Operation method |
Windows X P, Win7 operation, computer control |
| Accessories |
Computer, printer, system operation manual |
| Optional accessories |
Customized clamps by appointed, force sensors, printer, and operation manual |
| Weight |
400KG |
| Dimension |
(W×D×H)80×50×150CM |
| Power |
1PH, AC220V, 50/60Hz |
| Stroke protection |
Upper and lower protection, prevent over preset |
| Force protection |
System setting |
| Emergency stop device |
Handling emergencies |
Our Service Process
- Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide quotes
- Specifications Customization: Create drawings for customized requirements, provide reference photos, and confirm final solution
- Production and Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and arrange shipping
- Installation and After-Sales: Provide on-site installation and ongoing after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. Generally, we offer 12 months for FREE maintenance, while considering sea transportation, we can extend 2 months for our customers.
If your machine doesn't work, you can send us an e-mail or call us. We will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
What about the delivery term?
For our standard machines in stock: 3-7 working days.
For machines not in stock: 15-20 working days after payment is received.
Special arrangements can be made for urgent requirements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard machines and customized machines according to your requirements. We provide OEM and ODM services and can place your logo on the machine.
How can I install and use the machine?
Once you order testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machines are shipped fully assembled - you just need to connect the power cable and start using it. If necessary, we can also assist you with on-site installation.
